Small water jet granite cutter
|Payment Type:||L/C,T/T,Money Gram,Western Union|
|Terms of Trade:||FOB,CFR,CIF,EXW,FCA|
|Delivery Time:||30 Days|
|Packaging:||ply-wood case packing|
|Place of Origin:||China|
Model No.: L1010
Split Waterjet cutting machine cutter MAX5 series 3D CNC Waterjet Cutting Machine (YCWJ-L3020 / MAX5）Small water jet granite cutter
Water Jet Cutter is mainly divided into abrasive cutting and only water cutting(Including pure water cutting). Therefore, the cutting head is also divided into abrasive waterjet cutting head and pure waterjet cutting head.
Abrasive waterjet cutting is mainly used for cutting metal (such as carbon steel, stainless steel, etc.), nonferrous metal (such as copper, aluminum, titanium alloy, magnesium alloy, etc.), stone, glass, large thickness composite materials (such as carbon fiber, glass fiber) and so on.
Only Water Jet Granite Cutter is mainly used for cutting rubber, foam, cloth, paper, rock wool, food （pure waterjet cutting）and so on.
In recent years, with the application of water jet cutting more and more widely, people's requirements for water jet cutting are also getting higher and higher，from the initial complete vertical cutting to bevel chamfer cutting and even more complicated gradient surface cutting.Thus, a five axis cutting system with deflection angle and dynamic adjustment function has been produced.
5axis waterjet cutting machine, first step is heating treatment which achieve stress relieving,second step is Sand-blasting which is made on the cutting table to remove the oxidation layer.Then the surface will be cleaner with higher roughness, enhancing the adhesiveness of painting on it.
HIGH PRECISION 5AXIS CUTTING HEAD
Metal Cutting Machine cutting head is based on the standard three-axis (x-axis Y-axis Z-axis) and adds the a-axis (rotation around x-axis) and the c-axis (rotation around z-axis), which can achieve large-angle deflection。By using state-of-the-art technology and Italian ECS control system, it can produce 0-±45° or more inclined cuts with a maximum rotation angle of up to ±540°.Therefore, it can achieve the effect of 3d waterjet cutting.
With Max 5 axis water jet cutting system YC WATER JET has been widely used in cutting industry with high-precision requirement, such as cutting cone, arc-shaped impeller, gear and other workpieces.
WATERJET HIGH PRESSURE PUMP
The whole waterjet pump is made in USA-Hypertherm Waterjet.
Available in three power levels, Echion™ 15, 30, and 50 waterjet pumps deliver consistent cut quality at optimum cutting speeds and a design that simplifies service so maintenance is faster, easier, and less expensive. At the same time, Echion pumps include features like fully integrated cooling for a smaller footprint that enables easy integration into small spaces.
WATERJET CNC CONTROLLER & SOFTWARE

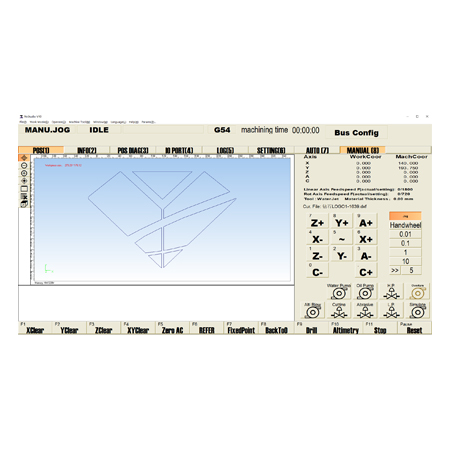

Small Water Jet Cutter NcStudio is a fast, user friendly, easy to learn waterjet controller software. Its advanced capabilities allow you to reliably waterjet cut quality parts efficiently.
With PM95A control card(WEIHONG) and high performance industrial computer(ADVANTECH).
YASKAWA SERVO DRIVER & MOTOR-Σ7
The increased power demands of large automation components utilize the robust performance of SGM7G.
These servo motors are built with a compact footprint, yet provide a higher torque while maintaining an inertia rating well within the medium range.
Max running speed
X/Y positioning accuracy
X/Y repeating positioning accuracy
Max beveling degree (A-axis)
Max rotary degree(C-axis)
Applicable cutting material
Mild steel, stainless steel, aluminium, brass, copper, galvanized steel and other kinds of metallic sheet
1 Year（not include the consumable parts）
Air cooling/Water cooling
Installation & Debugging
1) Clients arrange technician getting training in our factory or we send technician to client’s side until the operator masters the basic technique of using the machine.
2)The seller will provide technical guide online via e-mail, telephone, WeChat, WhatsApp or Teamview etc.
Servo driver & motor
Gear rack & Pinion
YC /Hypertherm/ KMT
Benefits to you
*19 inch display (touch screen is optional)
*Easy to use software system
*Scalable and customizable
*High quality cutting table
*Simple maintenance with detailed instructions.
Due to the covid-19, detailed instruction is recommended. We are confident that we can give you the information of machine operation through online introduction.
